TreeView | Getting Started

A hierarchical TreeView for .NET MAUI and Blazor with lazy-loaded branches, configurable expand/collapse icons, single or multi-selection, per-item CanExpand / CanSelect predicates, retry on load failure, optional guide lines, and drag/drop reorder.

GitHub
MAUI
Blazor

Frameworks

.NET MAUI

Blazor

MAUI

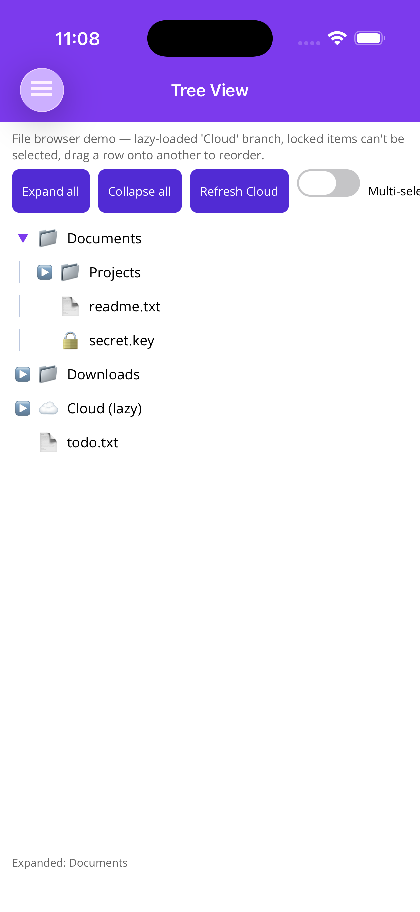

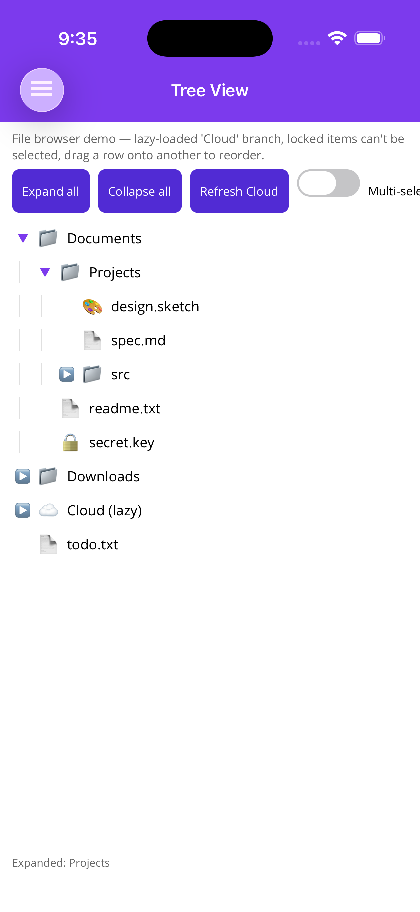

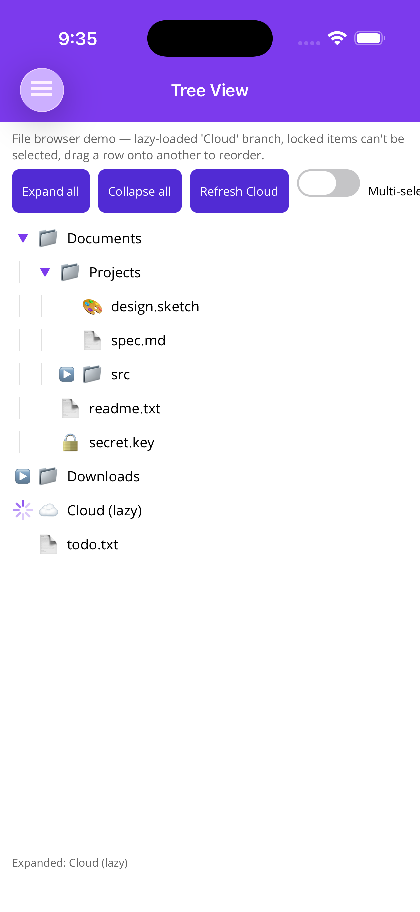

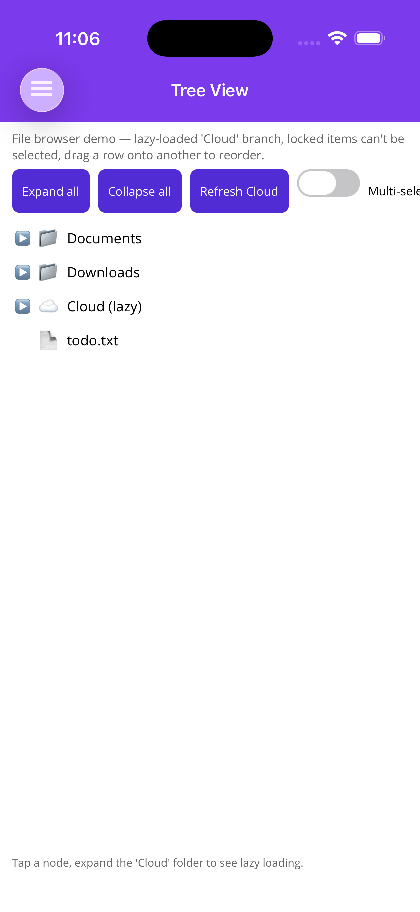

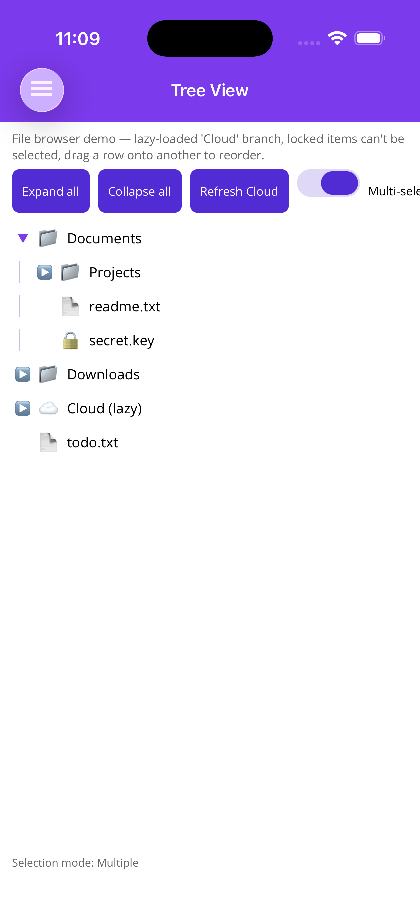

Initial	Expanded	Multi-level	Lazy load	Multi-select

Blazor

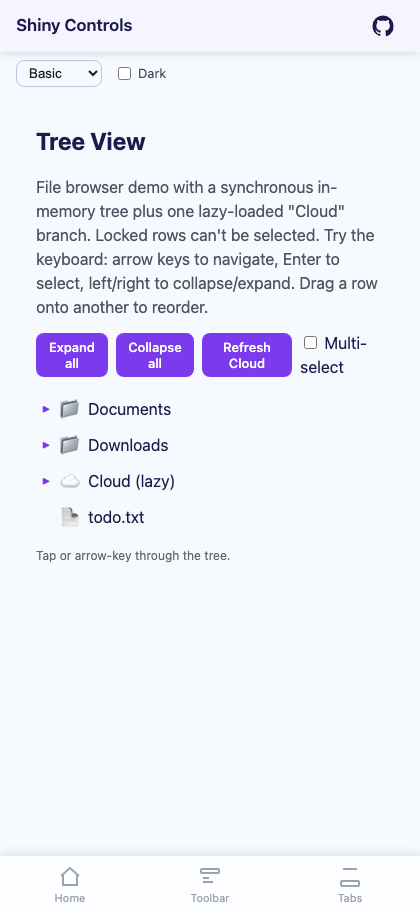

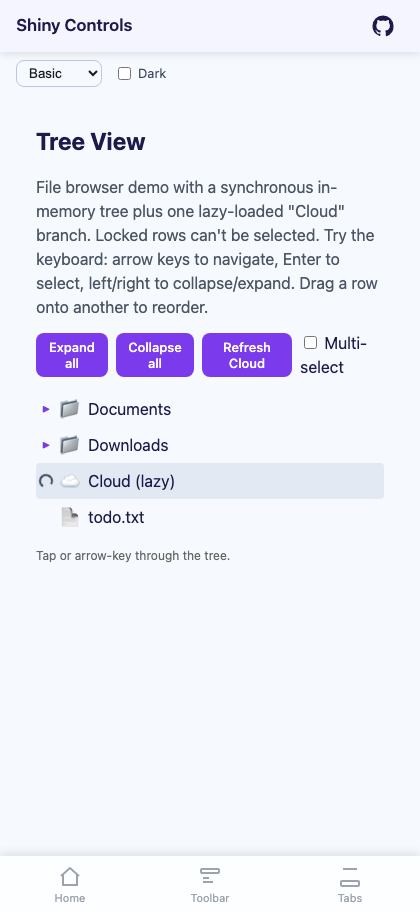

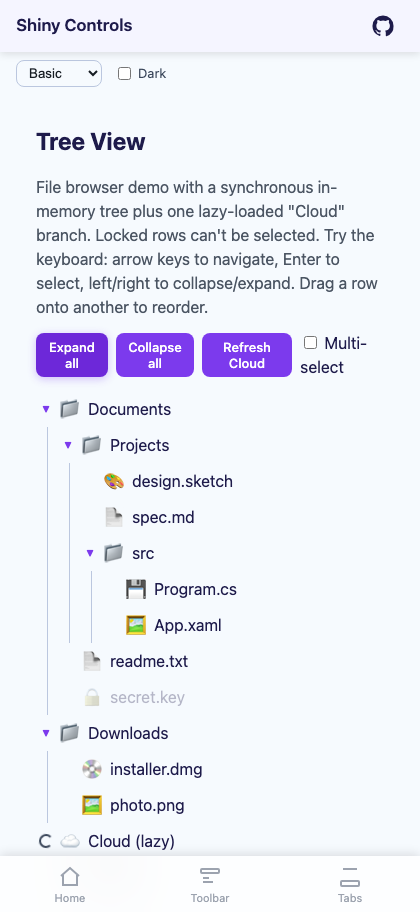

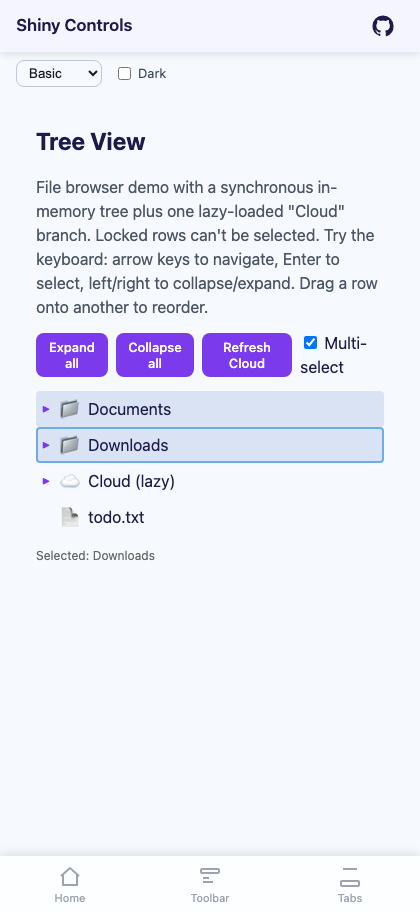

Collapsed	Expanded	Lazy-load spinner	Multi-selection

Features

• Hierarchical data binding via ItemsSource + ChildrenSelector (sync) and/or ChildrenLoader (async)
• Lazy loading — children load on first expand; chevron is replaced with a spinner; failures show a retry icon
• Async root loader — top-level items can also be lazy
• Configurable expand/collapse/retry icons — pass any ImageSource (MAUI) or RenderFragment (Blazor), fall back to built-in glyphs
• Per-item CanExpand and CanSelect predicates — gate gestures without removing rows
• HasChildrenSelector — render true leaves with no chevron, distinct from CanExpand
• Selection modes: None, Single (two-way SelectedItem), Multiple (SelectedItems, checkbox per row)
• Events + Commands (MAUI) for ItemSelected, ItemExpanded, ItemCollapsed, LoadFailed, ItemDropped
• Programmatic API: ExpandAll / ExpandAllAsync / CollapseAll / Expand / Collapse / SelectAll / DeselectAll / SetBranchSelected / Refresh / ReloadAsync
• Indent + guide lines — configurable IndentSize, toggleable ShowGuideLines
• Drag/drop reorder — above/below/into drop positions with visual drop indicators; event-only (the control never mutates your data)
• Blazor keyboard navigation — arrow keys, Enter, Home/End

Setup

1. Install the NuGet package

   dotnet add package Shiny.Maui.Controls

2. Register in your MauiProgram.cs

   using Shiny;

   var builder = MauiApp.CreateBuilder();
   builder
       .UseMauiApp<App>()
       .UseShinyControls();

3. Add the XAML namespace to your pages

   xmlns:shiny="http://shiny.net/maui/controls"

Quick Start

Bind a hierarchical model and supply a ChildrenSelector:

<shiny:TreeView ItemsSource="{Binding Roots}"
                ChildrenSelector="{Binding GetChildren}"
                HasChildrenSelector="{Binding IsFolder}"
                SelectedItem="{Binding Selected, Mode=TwoWay}"
                ItemExpanded="OnExpanded">
    <shiny:TreeView.ItemTemplate>
        <DataTemplate x:DataType="local:FileNode">
            <HorizontalStackLayout Spacing="8">
                <Label Text="{Binding Icon}" />
                <Label Text="{Binding Name}" VerticalTextAlignment="Center" />
            </HorizontalStackLayout>
        </DataTemplate>
    </shiny:TreeView.ItemTemplate>
</shiny:TreeView>

In code-behind, set the delegate properties (they aren’t bindable from XAML because they’re Func<T>):

public TreeViewPage()
{
    InitializeComponent();
    Tree.ChildrenSelector = item => (item is FileNode f) ? f.Children : null;
    Tree.HasChildrenSelector = item => item is FileNode { IsFolder: true };
    Tree.CanSelectSelector = item => item is FileNode f && !f.IsLocked;
}

Lazy Loading

Set ChildrenLoader to an async delegate. The chevron is replaced with a spinner during the load. If the loader throws, the spinner becomes a retry icon (↻) — tapping it re-runs the loader.

Tree.ChildrenLoader = async item =>
{
    var children = await myService.GetChildrenAsync(item);
    return children;
};

You can mix sync and lazy branches in the same tree. The selector is checked first; if it returns null and a loader is set, the loader runs:

Tree.ChildrenSelector = item => item is FileNode { LazyLoad: false } f ? f.Children : null;
Tree.ChildrenLoader   = LoadRemoteChildrenAsync;

Catch load failures and react in your VM:

Tree.LoadFailed += (s, e) =>
    StatusLabel.Text = $"Failed to load {((FileNode)e.Item).Name}: {e.Exception.Message}";

Lazy Root

For trees where even the root list is expensive, set RootLoader:

Tree.RootLoader = async () => await myService.GetTopLevelAsync();

The whole tree shows a centered loading indicator until it resolves. Tap-to-retry is automatic on failure.

Selection

<shiny:TreeView SelectionMode="Single"
                SelectedItem="{Binding Selected, Mode=TwoWay}" />

For multi-select — every row gets a checkbox:

<shiny:TreeView SelectionMode="Multiple"
                SelectedItems="{Binding Selected}" />

The checkbox mirrors the row’s selection and the whole row is the hit target, so tapping the row or the box toggles it. Rows blocked by CanSelectSelector render a dimmed box. Set ShowSelectionCheckBoxes="False" for the older highlight-only look, and CheckBoxColor to override the Primary theme tint. Changing SelectionMode clears the current selection.

Select or clear in bulk:

Tree.SelectAll();                       // everything selectable and loaded, collapsed branches included
Tree.SetBranchSelected(folder, true);   // one item and its loaded descendants
Tree.DeselectAll();                     // clears in any mode

Only nodes the tree has materialized can be checked — call ExpandAllAsync() first to select a lazy tree in full.

Use CanSelectSelector to disable selection for specific items (e.g. category headers, locked rows). Their rows still render and remain visible — they just won’t fire ItemSelected.

Configurable Icons

Set ExpandedIcon, CollapsedIcon, and RetryIcon to ImageSource values (font icons, embedded resources, URIs). Defaults are the glyphs ▼, ▶, and ↻.

<shiny:TreeView ChevronColor="#7C3AED" ChevronSize="14">
    <shiny:TreeView.ExpandedIcon>
        <FontImageSource Glyph="&#xF078;" FontFamily="FontAwesome" Color="#7C3AED" />
    </shiny:TreeView.ExpandedIcon>
    <shiny:TreeView.CollapsedIcon>
        <FontImageSource Glyph="&#xF054;" FontFamily="FontAwesome" Color="#7C3AED" />
    </shiny:TreeView.CollapsedIcon>
</shiny:TreeView>

Drag & Drop Reorder

Set EnableDragDrop="True" and handle ItemDropped. The event args carry Source, Target, and a Position (TreeDropPosition.Above / Below to reorder among the target’s siblings, Into to move into a folder — determined by where the pointer lands on the target row). Rows show drop indicators while dragging: a horizontal line for above/below, a highlight + border for into.

The TreeView never mutates your data — your handler decides what to do:

void OnItemDropped(object? sender, TreeItemDroppedEventArgs e)
{
    var src = (FileNode)e.SourceItem;
    var tgt = (FileNode)e.TargetItem;

    var srcList = FindParentList(src);
    if (e.Position == TreeDropPosition.Into)
    {
        srcList.Remove(src);
        tgt.Children ??= new();
        tgt.Children.Add(src);
    }
    else
    {
        var tgtList = FindParentList(tgt);
        srcList.Remove(src);
        var idx = tgtList.IndexOf(tgt);
        tgtList.Insert(e.Position == TreeDropPosition.Above ? idx : idx + 1, src);
    }

    Tree.ItemsSource = null;
    Tree.ItemsSource = data;
}

The control automatically rejects drops onto descendants (preventing cycles).

Note

iOS, Android, and Windows use the platform drag/drop APIs. Mac Catalyst, macOS AppKit, and Linux GTK4 use a pan-gesture fallback (Catalyst’s DragGestureRecognizer is broken upstream and the labs hosts don’t implement it) — same events, same behavior.

Events & Commands (MAUI)

Event	Command	Args
ItemSelected	ItemSelectedCommand	TreeItemEventArgs
ItemExpanded	ItemExpandedCommand	TreeItemEventArgs
ItemCollapsed	ItemCollapsedCommand	TreeItemEventArgs
LoadFailed	LoadFailedCommand	TreeLoadFailedEventArgs
ItemDropped	ItemDroppedCommand	TreeItemDroppedEventArgs

All event args carry the underlying Node and convenience Item property.

Programmatic Control

Tree.ExpandAll();             // sync — materializes via ChildrenSelector, skipping only
                              // the branches that need ChildrenLoader
await Tree.ExpandAllAsync();  // awaits ChildrenLoader for every node
Tree.ExpandAll(maxDepth: 8);  // both default to a depth cap of 32 (cycle guard)
Tree.CollapseAll();
Tree.Expand(item);
Tree.Collapse(item);
Tree.SelectAll();             // Multiple mode only
Tree.DeselectAll();
Tree.SetBranchSelected(item, true);
Tree.Refresh(item);           // drops cached children, re-runs loader on next expand
await Tree.ReloadAsync();     // re-runs RootLoader or rebinds ItemsSource
var node = Tree.FindNode(item); // locate the wrapper node for any source item

Visual Customization

Property	Default	Description
IndentSize	20	Pixels of horizontal indent per level
RowPadding	8,6	Padding inside each row
RowSpacing	0	Vertical spacing between rows
ShowGuideLines	false	Vertical lines connecting parents to children
GuideLineColor	#E0E0E0	Color of the guide lines
ChevronColor	Gray	Color of the default glyph chevron
ChevronSize	16	Size of the chevron in pixels
SelectedBackgroundColor	#E3F2FD	Background tint of the selected row
RowBackgroundColor	Transparent	Background of unselected rows

Next Steps

• Blazor Usage — typed <TreeView TItem> component with RenderFragment icon slots and keyboard navigation
