AppLayout

An application shell: a header, a footer, a left and a right panel, and the content between them. Panels collapse to nothing, to a narrow toolbar rail, or to their full width; they drag to resize between a minimum and maximum; and every region keeps its own scroll region.

Blazor only. For a Visual-Studio-style surface where the user rearranges tabbed, tear-off tool windows, see Docking instead — AppLayout is for a fixed shell whose panels you define.

•

Frameworks

Blazor

Screenshots

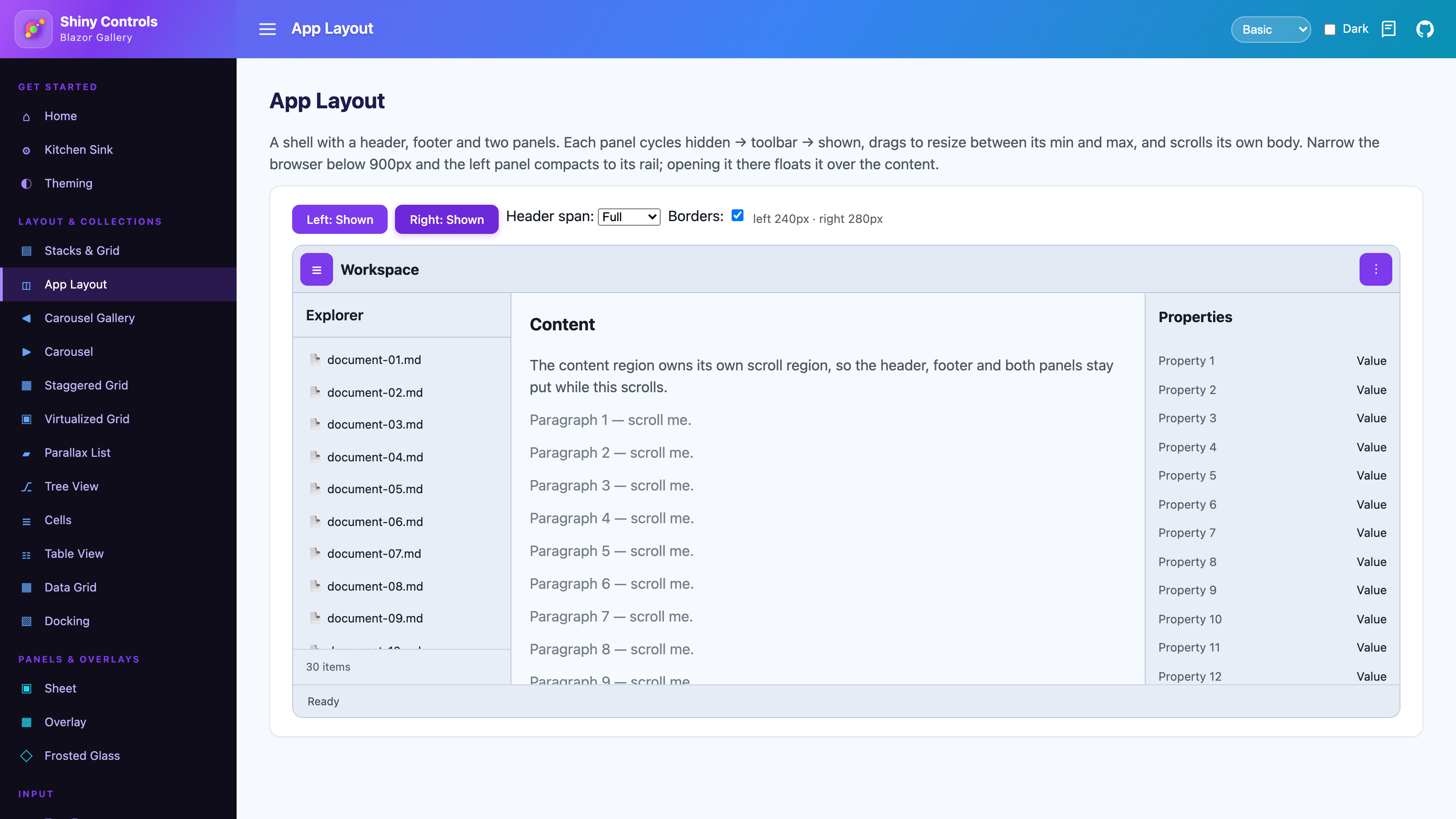

Both panels shown	Both hidden	Both collapsed to the rail

Features

• Three panel states – Hidden, Toolbar (a narrow rail rendering whatever you put in ToolbarContent) and Shown, two-way bindable or driven from code.
• Drag to resize – a handle on each panel’s inner edge, clamped to MinSize and MaxSize, with the final width reported back through @bind-Size.
• Independent scroll regions – the panel body, the toolbar rail and the content each scroll on their own while the header, footer and a panel’s pinned header/footer stay put.
• Configurable borders – a default width and colour on the shell that every region inherits and can override, or turn off per region.
• Responsive – under a breakpoint measured on the shell (not the window), an expanded panel compacts to a rail and re-expands as a drawer floating over the content.
• Persistence – opt in with PersistKey and a panel’s state and width survive a reload.
• Order-independent markup – regions are placed by CSS grid areas, so you can write them in whatever order reads best.

Claude CodeGitHub Copilot

Step 1 — Add the marketplace:

claude plugin marketplace add shinyorg/skills

Step 2 — Install the plugin:

claude plugin install shiny@shiny

One plugin installs all 35 Shiny skills. Your agent loads only the skill relevant to what you're building, so there's no cost to having them all available.

Step 1 — Add the marketplace:

copilot plugin marketplace add https://github.com/shinyorg/skills

Step 2 — Install the plugin:

copilot plugin install shiny@shiny

One plugin installs all 35 Shiny skills. Your agent loads only the skill relevant to what you're building, so there's no cost to having them all available.

View shiny-controls Skill

Getting started

Nothing to register — no service, no JS reference. The shell imports its own module.

@using Shiny.Blazor.Controls

<AppLayout Height="100dvh">
    <AppLayoutHeader Height="56" Padding="0 16">
        <button @onclick="() => nav.ToggleAsync()">☰</button>
        <strong>My App</strong>
    </AppLayoutHeader>

    <AppLayoutPanel @ref="nav"
                    Side="PanelSide.Left"
                    @bind-State="navState"
                    @bind-Size="navWidth"
                    MinSize="180"
                    MaxSize="420"
                    CollapseBelow="900"
                    PersistKey="nav">
        <HeaderContent><h4>Explorer</h4></HeaderContent>
        <ToolbarContent>
            <VStack Spacing="4" Align="StackAlign.Center" Padding="8 0">
                <button title="Files">🗂</button>
                <button title="Search">🔍</button>
            </VStack>
        </ToolbarContent>
        <ChildContent>
            @* this is the scrolling body *@
            <NavMenu />
        </ChildContent>
        <FooterContent>…</FooterContent>
    </AppLayoutPanel>

    <AppLayoutContent Padding="20">
        @Body
    </AppLayoutContent>

    <AppLayoutFooter Height="36" Padding="0 16">Ready</AppLayoutFooter>
</AppLayout>

@code {
    AppLayoutPanel nav = default!;
    PanelState navState = PanelState.Shown;
    double navWidth = 260;
}

Caution

The shell needs a definite height. Height defaults to 100%, which collapses inside a plain <div> that has no height of its own — use 100dvh for a full-page shell, or give the wrapper an explicit height.

AppLayout

Parameter	Type	Default	Description
Height	string	"100%"	CSS height of the shell
HeaderSpan	LayoutSpan	Full	Full runs the header edge to edge; Content insets it between the panels, which then run the full height
FooterSpan	LayoutSpan	Full	The same for the footer
BorderWidth	double	1	Default divider width for every region
BorderColor	string?	theme outline	Default divider colour for every region
Background	string?	null	CSS background shorthand
HostWidth	double	read-only	Last measured width of the shell

AppLayoutHeader & AppLayoutFooter

Height (pixels; null sizes to the content), Border, BorderWidth, BorderColor, Background and Padding. The header draws its divider on the bottom, the footer on the top. Neither scrolls.

AppLayoutContent

Scrollable (default true), Background and Padding. There are no border parameters — the header, footer and panels each draw the divider on their own edge.

AppLayoutPanel

Parameter	Type	Default	Description
Side	PanelSide	Left	Which edge the panel docks to
State	PanelState	Shown	Hidden, Toolbar or Shown. Two-way via @bind-State
Size	double	260	Expanded width in pixels. Two-way via @bind-Size, updated after a drag
MinSize / MaxSize	double	140 / 640	Drag clamps
Resizable	bool	true	Show the drag handle on the inner edge
ToolbarSize	double	56	Rail width in Toolbar state
CollapseBelow	double	0	Shell width under which the panel compacts. Zero disables it
CollapsedState	PanelState	Toolbar	What an expanded panel collapses to
PersistKey	string?	null	Saves state and width to localStorage
Scrollable	bool	true	Give the body its own scroll region
Border, BorderWidth, BorderColor			Divider on the edge facing the content
Background	string?	null	CSS background shorthand
Padding	string?	null	Applied to the body, so a pinned header or footer stays flush

Content slots

Slot	Renders
HeaderContent	Pinned above the body
ChildContent	The scrolling body
FooterContent	Pinned below the body
ToolbarContent	Replaces the body in Toolbar state — put anything you like in the rail

Members

Member	Description
SetStateAsync(PanelState)	Move to a state, raising StateChanged
ToggleAsync()	Toggle between Shown and CollapsedState
CurrentState	The live state, which may differ from State after a collapse
CurrentSize	The live width, which may differ from Size after a drag
IsOverlay	True while the panel is floating as a compact drawer

Responsive behaviour

CollapseBelow is measured against the shell, not the browser window — an AppLayout nested inside a card compacts when the card gets narrow.

Below the breakpoint an expanded panel drops to CollapsedState. Expanding it while compact floats it over the content as a drawer with a scrim; clicking the scrim dismisses it. Widening back past the breakpoint restores whatever state the panel had before it compacted.

Compacting never writes to PersistKey — it is a response to the viewport, not a preference the user expressed.

Borders

BorderWidth and BorderColor on the shell become the default for every region, resolved through CSS variables so theme tokens still apply. Each region overrides them individually, or removes its divider with Border="false".

<AppLayout BorderWidth="2" BorderColor="var(--shiny-color-primary)">
    <AppLayoutHeader Border="false">…</AppLayoutHeader>
    <AppLayoutPanel Side="PanelSide.Left" BorderColor="#e5e7eb">…</AppLayoutPanel>
</AppLayout>

A Hidden panel drops its divider along with its width, so collapsing one never leaves a sliver of border sitting flush against the next region’s border.

Aligning header buttons with a rail

A button placed in the header with nothing but the header’s padding to position it will not line up with the icons in a Toolbar rail underneath it. Give it a slot exactly as wide as the panel’s ToolbarSize and centre it in there:

@* one constant drives the rail width and the header slot, so they cannot drift apart *@
<AppLayoutHeader Height="52" Padding="0" style="display:flex;align-items:center;">
    <div style="flex:0 0 auto;width:52px;display:flex;justify-content:center;">
        <button style="width:36px;height:36px;padding:0;" @onclick="ToggleNavAsync">☰</button>
    </div>
    <strong>Workspace</strong>
</AppLayoutHeader>

<AppLayoutPanel Side="PanelSide.Left" ToolbarSize="52" @ref="nav">…</AppLayoutPanel>

Using ShinyToolbar and ShinyTabBar as regions

Both bars position themselves by default, which fights the shell’s grid — the regions already pin them, so turn it off:

• ShinyToolbar defaults to Sticky="true". Pass Sticky="false" inside an AppLayoutHeader or a panel’s HeaderContent.
• ShinyTabBar defaults to Fixed="true". Pass Fixed="false" inside an AppLayoutFooter, or it leaves the flow, the footer row collapses to nothing and the bar floats over the content.

<AppLayoutHeader Height="64" Border="false" Padding="0">
    <ShinyToolbar Sticky="false"
                  HasShadow="false"
                  BackgroundColor="var(--shiny-color-surface)"
                  TextColor="var(--shiny-color-on-surface)"
                  BorderThickness="1"
                  BorderColor="var(--shiny-color-outline-variant)"
                  Height="64" />
</AppLayoutHeader>

<AppLayoutFooter Border="false" Padding="0">
    <ShinyTabBar Fixed="false" Items="@tabs" />
</AppLayoutFooter>

Colour the bars from theme tokens rather than literals, or they stay on a light palette when the app switches to dark.

Accessibility

A Hidden panel keeps its element so the width can animate, but is marked inert and aria-hidden — nothing inside it is focusable or announced. The drag handle carries role="separator" with aria-orientation="vertical". The width transition is dropped under prefers-reduced-motion.

Next steps

• Layout — the VStack, HStack and responsive Grid primitives.
• Docking — user-rearrangeable, tear-off tool windows.
