Barcodes & QR Codes

Shiny.Maui.Controls.Barcodes and Shiny.Blazor.Controls.Barcodes are separate add-on packages that render 1D and 2D barcodes — including QR codes — using ZXing.Net. The PNG path uses a pure-managed, AOT-safe encoder built into the package: no SkiaSharp, no System.Drawing — so the exact same code ships clean on iOS, Android, Mac Catalyst, Windows, and Blazor WebAssembly.

There are three ways to produce a barcode, all backed by the same encoder:

Approach	Where it lives	Use it when
MAUI views — BarcodeView, QRCodeView	Shiny.Maui.Controls.Barcodes	You want a barcode on a XAML page
Blazor components — BarcodeView, QRCodeView	Shiny.Blazor.Controls.Barcodes	You want a barcode in a Razor component (SVG or PNG)
Headless BarcodeRenderer	Shiny.Controls.Barcodes (shared)	You need raw PNG bytes / SVG / data URI with no UI — PDFs, emails, label printing, services

Generation, not scanning

These packages draw barcodes. To read/scan a barcode with the device camera, use the BarcodeAnalyzer on the CameraView — see CameraView → Frame Analyzers.

•
•

Frameworks

.NET MAUI

Blazor

MAUI

Blazor

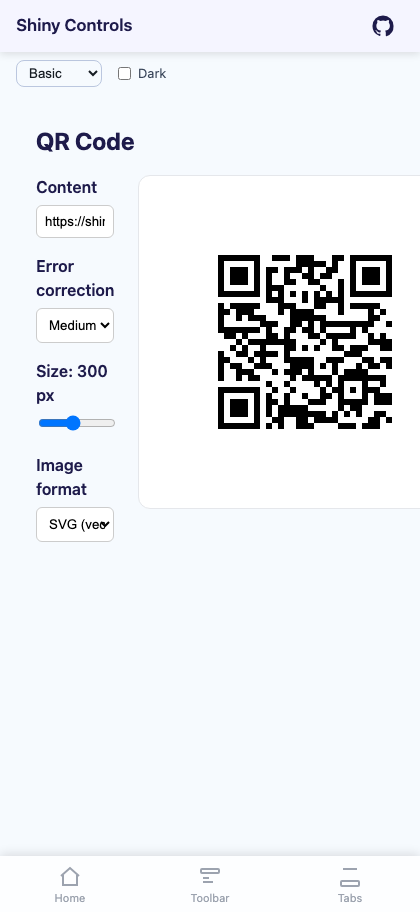

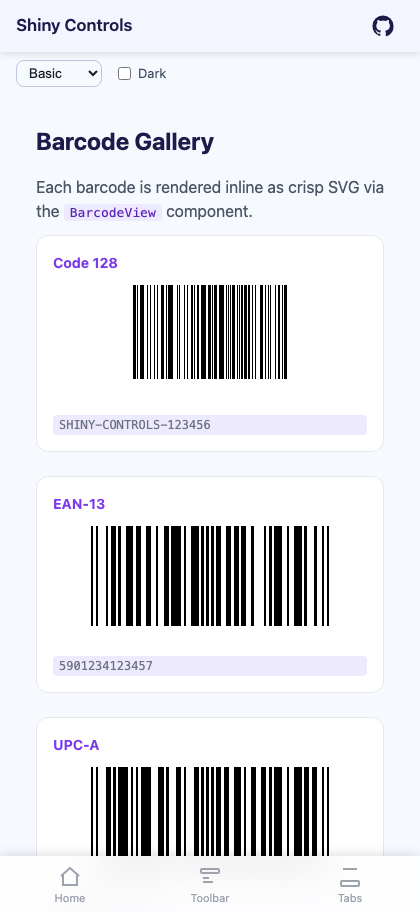

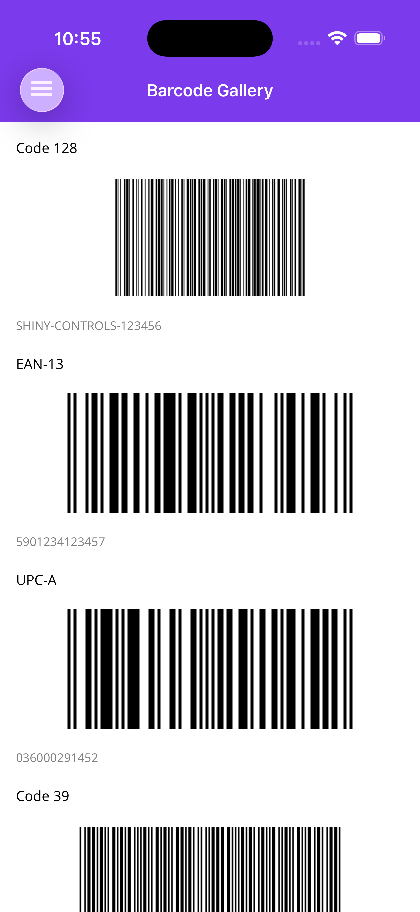

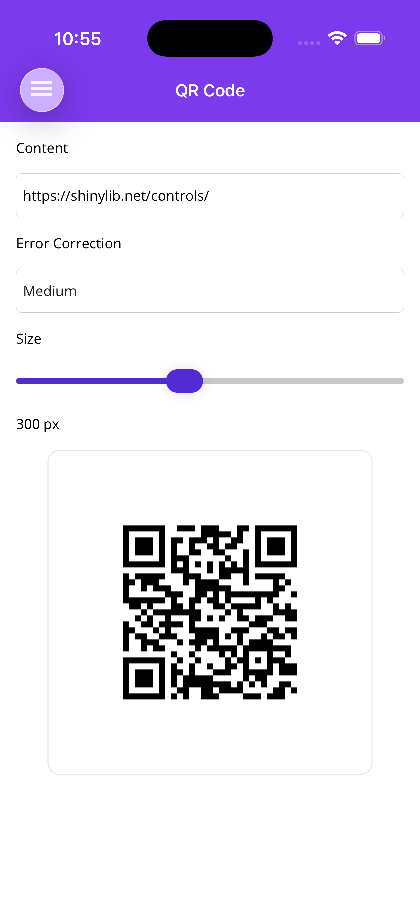

QR code	Symbology gallery

MAUIBlazor

Changed files

• MyApp/
  • MyApp.csproj

MyApp.csproj

MyApp.csprojCopy

1<Project Sdk="Microsoft.NET.Sdk">2	<PropertyGroup>3		<BaseTargetFramework>net10.0</BaseTargetFramework>4		<TargetFrameworks>$(TargetFrameworks);$(BaseTargetFramework)-ios</TargetFrameworks>5		<TargetFrameworks>$(TargetFrameworks);$(BaseTargetFramework)-android</TargetFrameworks>6		<!--useful for unit testing - not enabled by default since it can cause issues and callout projects that don't support target-->7		<!--<TargetFrameworks Condition="'$(CI)' != 'true'">$(TargetFrameworks);$(BaseTargetFramework)</TargetFrameworks>-->8	9		<RootNamespace>MyApp</RootNamespace>10		<SingleProject>true</SingleProject>11		<ImplicitUsings>enable</ImplicitUsings>12		<Nullable>enable</Nullable>13		<ApplicationTitle>MyApp</ApplicationTitle>14		<ApplicationId>com.companyname.app</ApplicationId>15		<ApplicationDisplayVersion>1.0</ApplicationDisplayVersion>16		<ApplicationVersion>1</ApplicationVersion>17		18		<MauiXamlInflator>SourceGen</MauiXamlInflator>19		<!--uncomment below for XAML expressions in net10-->20		<!--<EnablePreviewFeatures>true</EnablePreviewFeatures>-->21​22		<MauiVersion>10.0.90</MauiVersion>23		<ShinyVersion>5.5.0</ShinyVersion>24		<ShinyControlsVersion>1.2.0</ShinyControlsVersion>25		<ShinyShellVersion>6.3.2</ShinyShellVersion>26		<ShinyDocumentDbVersion>13.4.0</ShinyDocumentDbVersion>27		<ShinyMauiHostingVersion>5.1.5</ShinyMauiHostingVersion>28		<ShinyExtensionsVersion>5.1.5</ShinyExtensionsVersion>29		<ShinyHttpServerVersion>1.0.4</ShinyHttpServerVersion>30		<ShinySpeechVersion>3.0.0-beta-0030</ShinySpeechVersion>31		<ShinySpatialVersion>2.0.0</ShinySpatialVersion>32		<ShinyHealthVersion>2.0.1</ShinyHealthVersion>33		<ShinyMusicVersion>4.1.0</ShinyMusicVersion>34		<ShinyObdVersion>1.1.0</ShinyObdVersion>35		<ShinyRecognitionVersion>1.0.0-beta-0006</ShinyRecognitionVersion>36​37		<EnableAotAnalyzer>true</EnableAotAnalyzer>38        <EnableTrimAnalyzer>true</EnableTrimAnalyzer>39        <EnableSingleFileAnalyzer>true</EnableSingleFileAnalyzer>40​41	</PropertyGroup>42​43	<!-- If you want to enable AOT for iOS, uncomment the below. Note that this will cause a significant increase in build time, but will result in faster runtime performance and smaller app size. You can also enable it for just Release builds if you prefer.44	<PropertyGroup Condition="$([MSBuild]::GetTargetPlatformIdentifier('$(TargetFramework)')) == 'ios' and '$(Configuration)' == 'Release'">45        <PublishAot>true</PublishAot>46    </PropertyGroup>47	-->48​49	<PropertyGroup Condition="'$(TargetFramework)' != '$(BaseTargetFramework)'">50		<OutputType>Exe</OutputType>51		<UseMaui>true</UseMaui>52		<DefineConstants>$(DefineConstants);PLATFORM</DefineConstants>53	</PropertyGroup>54​55	<PropertyGroup Condition="'$(TargetFramework)' == '$(BaseTargetFramework)'">56		<OutputType>Library</OutputType>57		<UseMaui>false</UseMaui>58	</PropertyGroup>59​60	<PropertyGroup Condition="$([MSBuild]::GetTargetPlatformIdentifier('$(TargetFramework)')) == 'android'">61		<SupportedOSPlatformVersion>26.0</SupportedOSPlatformVersion>62		<TargetPlatformVersion>36</TargetPlatformVersion>63		<!--64		<EmbedAssembliesIntoApk Condition="'$(Configuration)' == 'Debug'">true</EmbedAssembliesIntoApk>65		<AndroidPackageFormats Condition="'$(Configuration)' == 'Release'">aab</AndroidPackageFormats>66		<AndroidLinkTool>r8</AndroidLinkTool>67		<AndroidLinkTool>proguard</AndroidLinkTool>68		-->69    </PropertyGroup>70​71	<PropertyGroup Condition="$([MSBuild]::GetTargetPlatformIdentifier('$(TargetFramework)')) == 'ios' AND '$(Configuration)' == 'Debug'">72        <!--forces the simulator to pickup entitlements-->73        <EnableCodeSigning>true</EnableCodeSigning>74        <CodesignRequireProvisioningProfile>true</CodesignRequireProvisioningProfile>75        <DisableCodesignVerification>true</DisableCodesignVerification>76    </PropertyGroup>77​78	<PropertyGroup Condition="$([MSBuild]::GetTargetPlatformIdentifier('$(TargetFramework)')) == 'ios' OR $([MSBuild]::GetTargetPlatformIdentifier('$(TargetFramework)')) == 'maccatalyst'">79		<SupportedOSPlatformVersion>15.0</SupportedOSPlatformVersion>80		<DefineConstants>$(DefineConstants);APPLE</DefineConstants>	81	</PropertyGroup>82​83	<ItemGroup Condition="$([MSBuild]::GetTargetPlatformIdentifier('$(TargetFramework)')) == 'ios' OR $([MSBuild]::GetTargetPlatformIdentifier('$(TargetFramework)')) == 'maccatalyst'">84		<BundleResource Include="Platforms\iOS\PrivacyInfo.xcprivacy" LogicalName="PrivacyInfo.xcprivacy" />85		86		<CustomEntitlements Include="keychain-access-groups" Type="StringArray" Value="%24(AppIdentifierPrefix)$(ApplicationId)" Visible="false" />87	</ItemGroup>88​89	<ItemGroup>90		<TrimmerRootDescriptor Include="Linker.xml" Condition="'$(Configuration)' == 'Release'" />91​92		<MauiIcon Include="Resources\AppIcon\appicon.svg" ForegroundFile="Resources\AppIcon\appiconfg.svg" Color="#512BD4" />93		<MauiSplashScreen Include="Resources\Splash\splash.svg" Color="#512BD4" BaseSize="128,128" />94​95		<MauiImage Include="Resources\Images\*" />96		<MauiFont Include="Resources\Fonts\*" />97		<MauiAsset Include="Resources\Raw\**" LogicalName="%(RecursiveDir)%(Filename)%(Extension)" />98	</ItemGroup>99​100	<ItemGroup>101		<PackageReference Include="Shiny.Extensions.MauiHosting" Version="$(ShinyMauiHostingVersion)" />102		<PackageReference Include="Shiny.Maui.Controls.Barcodes" Version="$(ShinyControlsVersion)" />103		<PackageReference Include="Microsoft.Maui.Controls" Version="$(MauiVersion)" />104		<PackageReference Include="Microsoft.Extensions.Logging.Debug" Version="10.0.10" Condition="'$(Configuration)' == 'Debug'" />105	</ItemGroup>106​107	<ItemGroup Condition="'$(TargetFramework)' != '$(BaseTargetFramework)'">108		<PackageReference Include="Shiny.Hosting.Maui" Version="$(ShinyVersion)" />109	</ItemGroup>110​111</Project>

Features

• 13 symbologies — QRCode, Aztec, DataMatrix, Pdf417, Code128, Code39, Code93, Codabar, Ean8, Ean13, UpcA, UpcE, Itf. See Symbologies.
• QRCodeView shortcut — locks Format = QRCode, exposes a single square Size property, and adds ErrorCorrection (Low / Medium / Quartile / High).
• Pure-managed PNG encoder — custom zlib + CRC32 + Adler32 implementation; no SkiaSharp / System.Drawing dependency.
• Inline SVG on Blazor — single-<path> output with shape-rendering="crispEdges", scales infinitely without aliasing, stays tiny in the DOM.
• Configurable foreground / background colors — hex on the shared options, MAUI Color on the MAUI views, CSS strings on Blazor.
• Headless API — BarcodeRenderer.RenderPng / RenderSvg / RenderDataUri for use from view models, services, PDF builders, etc.
• AOT-safe — pure managed code, no dynamic codegen, no reflection-only types.

AI Skill

Claude CodeGitHub Copilot

Step 1 — Add the marketplace:

claude plugin marketplace add shinyorg/skills

Step 2 — Install the plugin:

claude plugin install shiny@shiny

One plugin installs all 35 Shiny skills. Your agent loads only the skill relevant to what you're building, so there's no cost to having them all available.

Step 1 — Add the marketplace:

copilot plugin marketplace add https://github.com/shinyorg/skills

Step 2 — Install the plugin:

copilot plugin install shiny@shiny

One plugin installs all 35 Shiny skills. Your agent loads only the skill relevant to what you're building, so there's no cost to having them all available.

View shiny-controls Skill

Installation

.NET MAUI

dotnet add package Shiny.Maui.Controls.Barcodes

xmlns:bc="http://shiny.net/maui/barcodes"

No DI registration is required — the views are plain ContentViews.

Blazor

dotnet add package Shiny.Blazor.Controls.Barcodes

@using Shiny.Blazor.Controls.Barcodes
@using Shiny.Controls.Barcodes

Quick Start

.NET MAUI

<!-- 1D / 2D — pick any supported Format -->
<bc:BarcodeView Value="5901234123457"
                Format="Ean13"
                PixelWidth="400"
                PixelHeight="150" />

<!-- QR code shortcut -->
<bc:QRCodeView Value="https://shinylib.net"
               Size="300"
               ErrorCorrection="High" />

Blazor

<!-- SVG output (default) — crisp at any CSS size -->
<BarcodeView Value="5901234123457" Format="BarcodeFormat.Ean13" />

<!-- QR shortcut -->
<QRCodeView Value="https://shinylib.net" Size="300"
            QRErrorCorrection="QRErrorCorrection.High" />

From code (no UI)

using Shiny.Controls.Barcodes;

byte[] png = BarcodeRenderer.RenderPng("https://shinylib.net", BarcodeFormat.QRCode);

Where to next

.NET MAUI UsageBarcodeView & QRCodeView, properties, theming, and binding examples.

Blazor UsageSVG vs PNG output, CSS sizing, parameters, and re-render behavior.

Headless RenderingBarcodeRenderer + BarcodeRenderOptions for PDFs, emails, and exports.

SymbologiesPer-format input rules, validation, and QR error correction.
