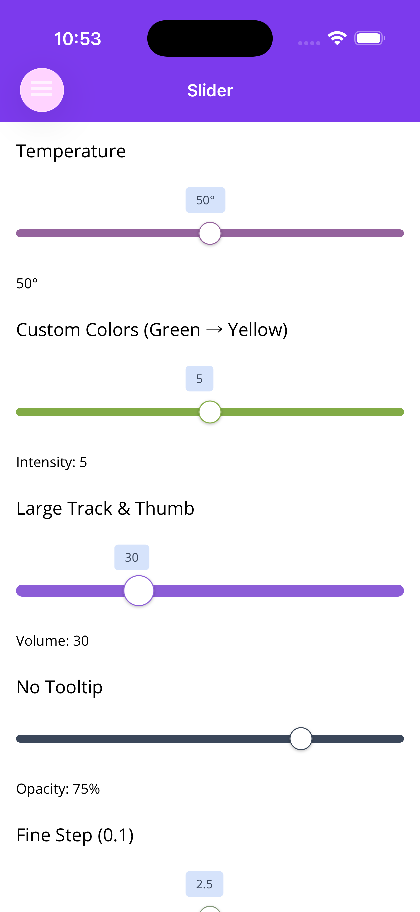

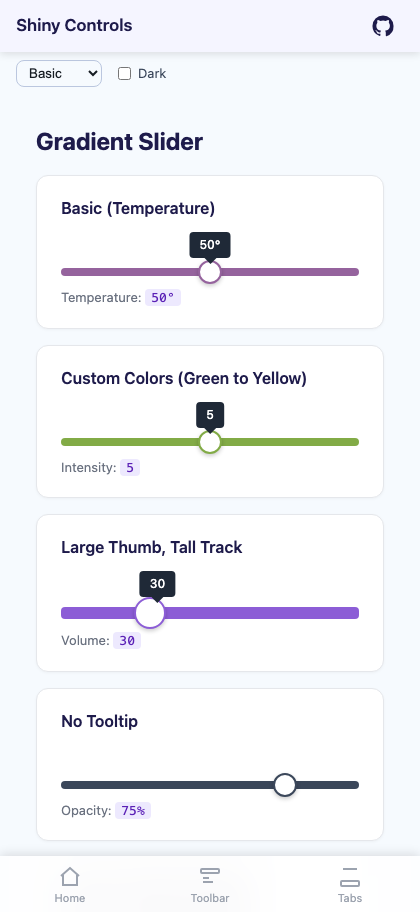

Slider

A slider control with a gradient track that blends from a cold color to a hot color. The thumb border color samples the gradient at the current position, and a tooltip floats above showing the current value. It can run vertically, and it can carry labelled stop points the thumb snaps to.

•
•

Frameworks

.NET MAUI

Blazor

MAUI

Blazor

Features

• Two-Color Blended Track – The whole track is one solid color: the blend of ColdColor and HotColor at the current position. At the minimum it is fully ColdColor, at the maximum fully HotColor.
• Blended Thumb Border – The thumb’s border color matches the gradient color at the current position, providing a visual cue of the value.
• Value Tooltip – A configurable tooltip badge floats above the thumb displaying the formatted current value with a pointer arrow.
• Custom Tooltip Template – Replace the default badge with a DataTemplate (MAUI) or RenderFragment<double> (Blazor) for fully custom tooltip rendering.
• Step Snapping – Values snap to the configured Step increment.
• Stop Points – Add SliderMarks to put dots, ticks or pill-shaped labels at fixed values, each with its own text and color. With SnapToMarks on (the default) the thumb comes to rest on the nearest one.
• Vertical Orientation – Orientation="Vertical" runs the track bottom-to-top, with the tooltip to its left and the mark labels to its right.
• Drag & Tap – Supports both drag (pan gesture / pointer drag) and tap-to-jump interaction.

AI Skill

Claude CodeGitHub Copilot

Step 1 — Add the marketplace:

claude plugin marketplace add shinyorg/skills

Step 2 — Install the plugin:

claude plugin install shiny@shiny

One plugin installs all 35 Shiny skills. Your agent loads only the skill relevant to what you're building, so there's no cost to having them all available.

Step 1 — Add the marketplace:

copilot plugin marketplace add https://github.com/shinyorg/skills

Step 2 — Install the plugin:

copilot plugin install shiny@shiny

One plugin installs all 35 Shiny skills. Your agent loads only the skill relevant to what you're building, so there's no cost to having them all available.

View Skills Repository

Quick Start

.NET MAUI

<shiny:Slider Value="{Binding Temperature}"
                      Minimum="0"
                      Maximum="100"
                      ColdColor="#3B82F6"
                      HotColor="#EF4444"
                      ValueFormat="0°" />

Blazor

<Slider @bind-Value="temperature"
                Minimum="0"
                Maximum="100"
                ColdColor="#3B82F6"
                HotColor="#EF4444"
                ValueFormat="0°" />

@code {
    double temperature = 50;
}

Properties

Property	MAUI Type	Blazor Type	Default	Description
Value	double	double	0	Current value (TwoWay)
Minimum	double	double	0	Minimum value
Maximum	double	double	100	Maximum value
Step	double	double	1	Snap increment (ignored while a mark is snapped to)
Orientation	SliderOrientation	SliderOrientation	Horizontal	Vertical puts the minimum at the bottom
VerticalLength	double	double	220	Track length when vertical
ColdColor	Color	string	#3B82F6	Left/bottom (cold) gradient color
HotColor	Color	string	#EF4444	Right/top (hot) gradient color
TrackHeight	double	double	8	Track height in px
ThumbSize	double	double	24	Thumb diameter in px
ThumbColor	Color	string	White	Thumb fill color
ThumbBorderWidth	double	double	2	Thumb border width
ShowTooltip	bool	bool	true	Show/hide the value tooltip
TooltipBackgroundColor	Color	string	#1F2937	Tooltip badge background
TooltipTextColor	Color	string	White	Tooltip text color
TooltipFontSize	double	double	12	Tooltip font size
ValueFormat	string?	string?	null	.NET format string for display
TooltipTemplate	DataTemplate?	RenderFragment<double>?	null	Custom tooltip content
IsEnabled	–	bool	true	Enable/disable (Blazor only; MAUI uses IsEnabled from VisualElement)
SnapToMarks	bool	bool	true	Thumb comes to rest on the nearest mark
MarkShape	SliderMarkShape	SliderMarkShape	Dot	Dot, Bubble (pill-shaped label) or Line (tick)
MarkSize	double	double	10	Dot diameter / tick thickness
MarkColor	Color?	string	Theme surface	Fill for marks that set no color
MarkTextColor	Color?	string	Theme on-surface-variant	Label color for marks that set no color
MarkFontSize	double	double	11	Mark label size
ShowMarkLabels	bool	bool	true	Draw the mark labels at all

Events & Commands

MAUI:

• ValueChangedEvent (EventHandler<double>) – Fired when value changes
• ValueChangedCommand (ICommand) – Command fired on value change

Blazor:

• ValueChanged (EventCallback<double>) – Two-way binding callback

Stop Points

Marks are the stop points on the track. On MAUI they are a collection; on Blazor they are child components. Each carries its own text and color.

MAUI

<shiny:Slider Value="{Binding Quality}" Minimum="0" Maximum="3" ShowTooltip="False">
    <shiny:Slider.Marks>
        <shiny:SliderMark Value="0" Text="Draft"  Color="#94A3B8" />
        <shiny:SliderMark Value="1" Text="Good"   Color="#38BDF8" />
        <shiny:SliderMark Value="2" Text="Better" Color="#22C55E" />
        <shiny:SliderMark Value="3" Text="Best"   Color="#F59E0B" />
    </shiny:Slider.Marks>
</shiny:Slider>

Blazor

<Slider @bind-Value="quality" Minimum="0" Maximum="3" ShowTooltip="false">
    <SliderMark Value="0" Text="Draft" Color="#94A3B8" />
    <SliderMark Value="1" Text="Good" Color="#38BDF8" />
    <SliderMark Value="2" Text="Better" Color="#22C55E" />
    <SliderMark Value="3" Text="Best" Color="#F59E0B" />
</Slider>

SliderMark

Property	MAUI Type	Blazor Type	Default	Description
Value	double	double	0	Position on the track
Text	string?	string?	null	Label – a caption under a dot or tick, the content of a bubble
Color	Color?	string?	null	Dot, tick or bubble fill; falls back to MarkColor
TextColor	Color?	string?	null	Label color; falls back to MarkTextColor
Shape	SliderMarkShape?	SliderMarkShape?	null	Overrides the slider’s MarkShape for this mark
Size	double	double	-1	Overrides MarkSize for this mark
IsVisible	bool	bool	true	A hidden mark is not drawn and is not a snap target

The stop point itself is always the dot or tick on the track; the label sits in the band beside it. Snapping parks the thumb on a mark by definition, so a label drawn on the track would spend its life underneath the thumb.

SnapToMarks defaults to true, so a slider with marks ignores Step. Set it false when the marks are only reference points – a target line, a redline – on an otherwise continuous slider:

<shiny:Slider Value="{Binding Pressure}" Minimum="0" Maximum="60" Step="1"
              SnapToMarks="False" MarkShape="Line" ValueFormat="0 psi">
    <shiny:Slider.Marks>
        <shiny:SliderMark Value="32" Text="Target" Color="#22C55E" />
        <shiny:SliderMark Value="50" Text="Max"    Color="#DC2626" />
    </shiny:Slider.Marks>
</shiny:Slider>

Vertical

A vertical slider runs bottom-to-top and has no width to stretch into, so it takes its length from VerticalLength rather than the layout.

MAUI

<shiny:Slider Orientation="Vertical" VerticalLength="180"
              Value="{Binding Bass}" Minimum="0" Maximum="10" Step="1" />

Blazor

<Slider @bind-Value="bass"
        Orientation="SliderOrientation.Vertical"
        VerticalLength="180"
        Minimum="0" Maximum="10" Step="1" />

Custom Tooltip Template

MAUI

<shiny:Slider Value="{Binding Temp}" Minimum="0" Maximum="100">
    <shiny:Slider.TooltipTemplate>
        <DataTemplate>
            <Border BackgroundColor="#7C3AED"
                    StrokeShape="{RoundRectangle CornerRadius=8}"
                    Padding="8,4">
                <Label Text="{Binding StringFormat='{0:0}°F'}"
                       TextColor="White" FontSize="14" />
            </Border>
        </DataTemplate>
    </shiny:Slider.TooltipTemplate>
</shiny:Slider>

Blazor

<Slider @bind-Value="temp" Minimum="0" Maximum="100">
    <TooltipTemplate Context="val">
        <div style="background: #7C3AED; color: white; padding: 4px 12px; border-radius: 8px;">
            @val.ToString("0")°F
        </div>
    </TooltipTemplate>
</Slider>

Behavior

• The whole track takes the single blended color for the current position
• The thumb border takes the same blended color, giving immediate visual feedback
• Values are clamped between Minimum and Maximum and snapped to Step, unless marks are present and SnapToMarks is on
• Setting ShowTooltip="False" hides the tooltip for a minimal appearance
• Vertical runs bottom-to-top: the minimum is at the bottom, the tooltip sits to the left of the track and the mark labels to its right
